RY-DB204
RY
RY-DB204
latón
círculos
35*25*4,5mm
espalda sólida o espalda hueca
8*18mm

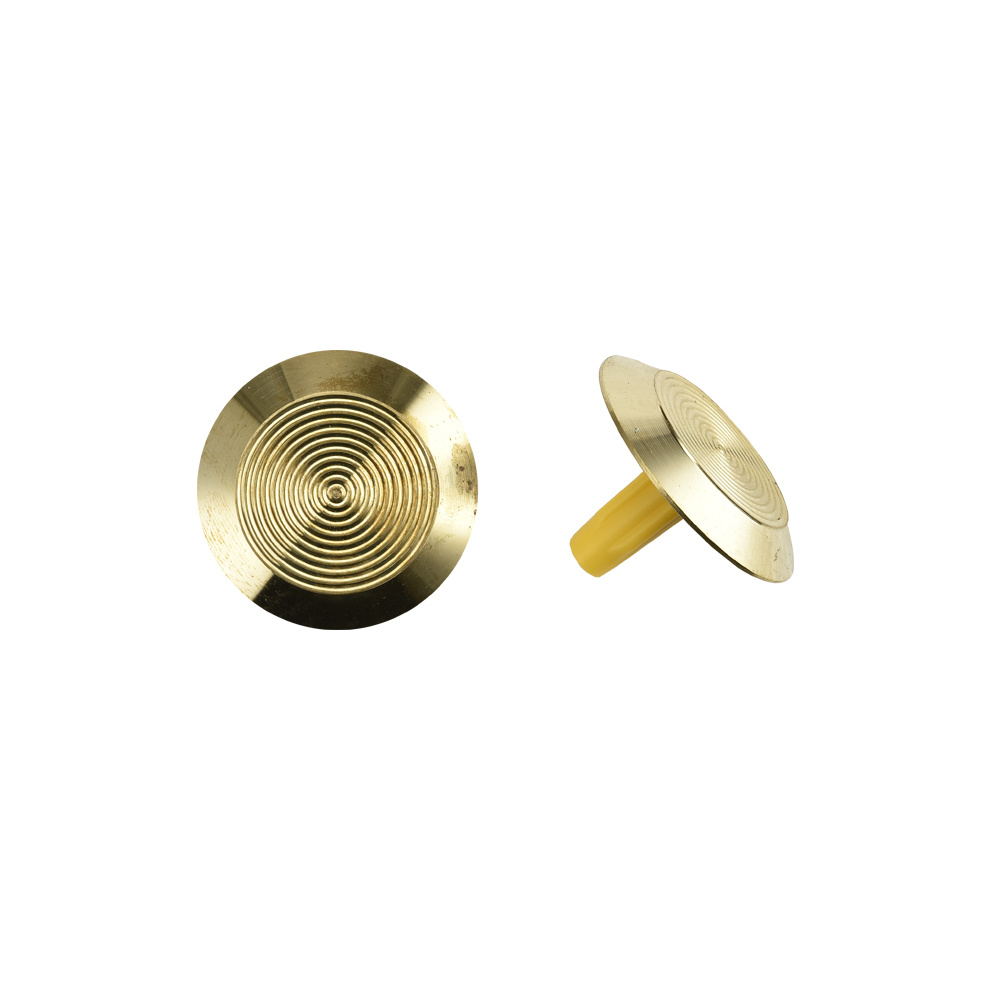

BRASS TACTILE INDICATOR: RY-DB204
Specification of Size:
| Diameter: | 35mm (tolerance: ±0.2) |
| Thickness: | 4.5mm (tolerance: ±0.2) |
| Diameter of leg: | 8mm (tolerance: ±0.2) |
| Length of leg: | 18mm (tolerance: ±0.5) |
Tactile Walking Surface Indicators for blind or vision-impaired persons, for guiding, warming and attention.
RY-DB204 is a warning tactile indicator made by #59 or #62 brass.

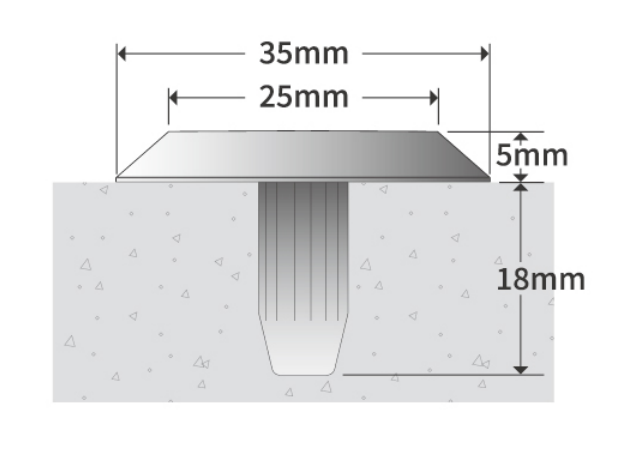

Install Instructions:
Drill and pressure fit.
( TIPS: Please clear the surface before installation, keep the using zone dry and without oil, water or other liquid.)
BRASS TACTILE INDICATOR: RY-DB204
Specification of Size:
| Diameter: | 35mm (tolerance: ±0.2) |
| Thickness: | 4.5mm (tolerance: ±0.2) |
| Diameter of leg: | 8mm (tolerance: ±0.2) |
| Length of leg: | 18mm (tolerance: ±0.5) |
Tactile Walking Surface Indicators for blind or vision-impaired persons, for guiding, warming and attention.
RY-DB204 is a warning tactile indicator made by #59 or #62 brass.
Install Instructions:
Drill and pressure fit.
( TIPS: Please clear the surface before installation, keep the using zone dry and without oil, water or other liquid.)
